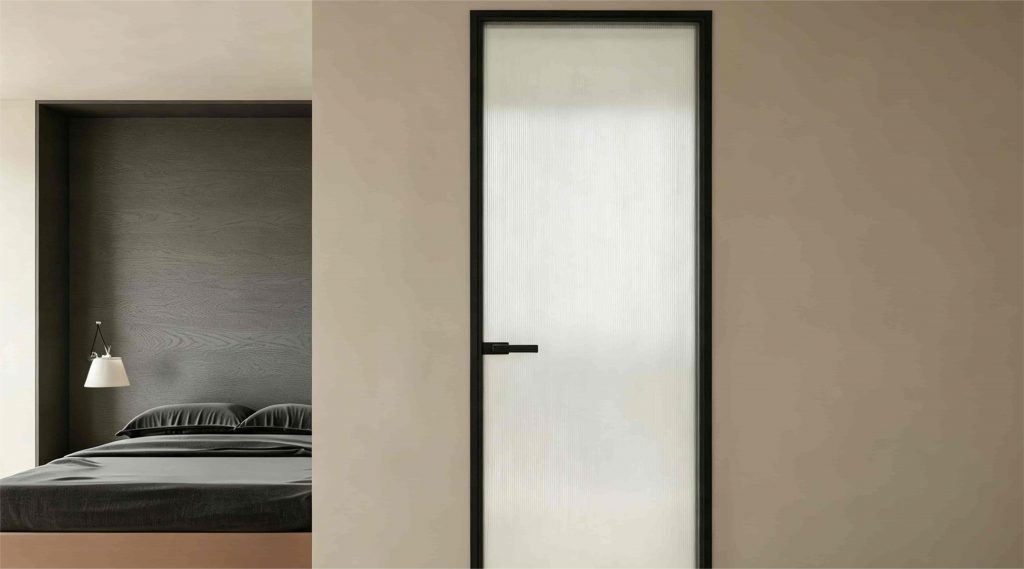

Full-Screen Minimalist Casement Door
Full-Screen Minimalist Casement Door
| Specification | Details |
| Series | Full-Screen Minimalist Casement Door |
| System Door Types | Interior Casement Door |
| Profile Thickness | 2.2mm |
| Glass Configuration | Configured with two panes of 5mm tempered glass (Euro Grey) |
| Sash Dimensions | Sash Width:Interlocking Stile Cladding: 2mm Sightline x 46mm Depth |
| Installation Flange Width | Single Casing: Face 30mm / Wall-Side 45.5mm Reverse Single Casing: Face 30mm / Wall-Side 45.5mm Double Casing (Front): Face 40mm / Wall-Side 11mm Double Casing (Rear): Face 30mm / Wall-Side 45.5mm |
| Recommended Size Range | Sash width(W): 600mm -1000mm Sash height(H): 1800mm -2700mm Note: An additional set of hinges is required when the sash height exceeds 2600mm. Please refer to the size limitation chart for specific structural limits. If the dimensions exceed the allowable range, please consult customer service and obtain special technical approval before placing your order. |

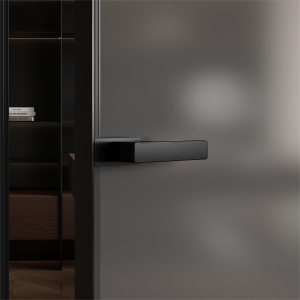

| Hardware | Standard：P10 Swing Door Handle + 2D Concealed Hinges |
| Color Options | Standard：Phantom Black |
| Core Advantages |
|
| Applicable Venues | Bathroom , Kitchen |
