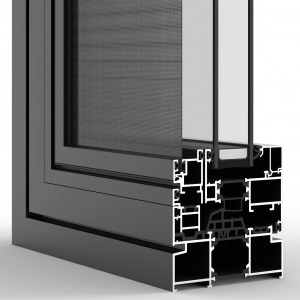

| Series | ZHIXUAN 100 Pro inward casement system window |
| Window Type | Inward-Opening Window System with Mesh |
| Frame Depth | 100mm |
| Sash Depth | W 65mm × D 71.5mm (W = Face Width, D = Sash Depth) |
| Profile Thickness | 1.8mm |
| Sash Size Limitations | Sash width(W): 370mm-750mm
Sash height(H): 530mm-2600mm
Micro-vent sash width(W):198mm
Micro-vent sash height(H):
1000mm-2600mm |
| Thermal Break | Frame：34mm / Sash：29mm（Baiyun Yile, Youtai) |
| Glass Configuration | 5mm + 27A + 5mm Insulated Tempered Glass (Standard: Black corrugated aluminum spacer bars) |
| Hardware | Inward Tilt-and-Turn:
Germany HOPPE Handle (A4 casement handle) + German Roto Concealed Tilt and Turn Hardware
Inward Casement：
Germany HOPPE Handle (A4 casement handle) + Wehag inward casement hinges + Wehag locking transmission Hardware
Inward Opening Screen Sash: E12 Concealed Lock + Proprietary Hardware |
| Opening Mode | - Inward Casement with Inward Screen（highly transparent screen mesh / High-transparency Stainless Steel screen mesh / Stainless Steel screen mesh）
- Tilt-and-Turn with Inward Screen （highly transparent screen mesh / High-transparency Stainless Steel screen mesh / Stainless Steel screen mesh）
Note:
Motorized tilt-turn window with fixed top portion: Fixed glass requires square beads, NOT beveled beads.
|
| Glazing Bead | Standard bevelled glazing beads; optional square glazing beads. |
| Color Options | External Color：Cold Moon Grey/Mocha Brown/Luminescent Gold/Starry Black/Phantom White/Phantom Grey Optional:Light cloud curry/Jade Green Internal Color:Cold Moon Grey/Mocha Brown/Luminescent Gold/Starry Black/Phantom White/Phantom Grey
Optional :Light cloud curry/Phantom Black/Waklnut/Red Teak/Red Sandalwood/Rosewood Gold |
| Core Advantages | - Flush Double-Inward：Full co-planar profiles for clean, sleek aesthetics.
- Utilizing advanced SUNHOHI corner-injection technology to ensure a structurally sound frame with superior overall performance.
- Concealed Drainage ：Integrated anti-wind flaps for backflow-free evacuation.
- Sash Corner-Guards ：Flush-embedded shields for enhanced safety and aesthetics.
- Premium Screen Options：Stainless Steel screen mesh, highly transparent screen mesh, and High-transparency Stainless Steel screen mesh for versatile protection.
|

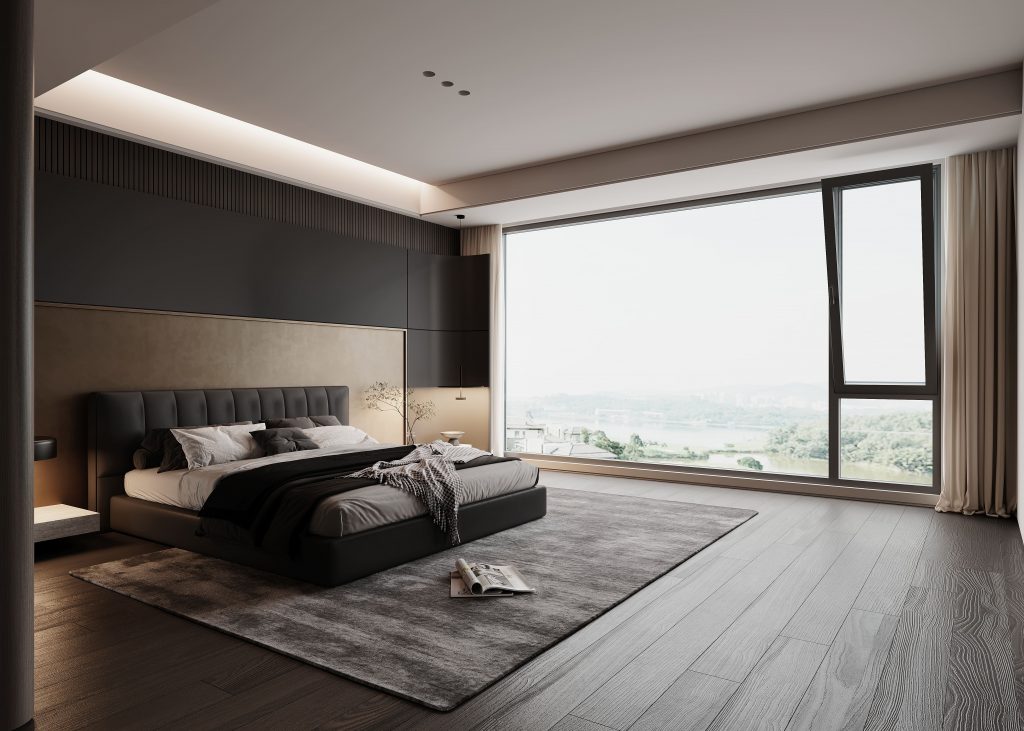

| Applicable Venues | Bedrooms,balcony enclosure, Kitchens，Commercial Spaces |
