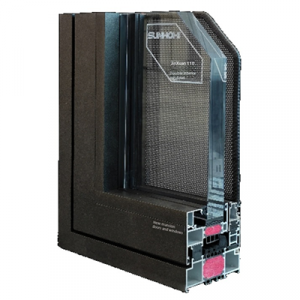

| Series | JINXUAN 110X inward casement system window |
| Window Type | Inward-Opening Window System with Mesh |
| Frame Depth | 110mm |
| Sash Depth | W 65mm × D 81.5mm (W = Face Width, D = Sash Depth) |
| Profile Thickness | 1.8mm |
| Sash Size Limitations | Sash width(W): 370mm-750mm
Sash height(H): 530mm-2600mm
Micro-vent sash width(W)：235mm
Micro-vent sash height(H)：
1000mm-2600mm |
| Thermal Break | Frame：44mm / Sash：39mm（Baiyun Yile, Youtai)(Technoform available for both fixed and opening sections) |
| Glass Configuration | 5mm + 12A + 5mm + 12A + 5mm Insulated Tempered Glass (Standard: Black corrugated aluminum spacer bars) |
| Hardware | Inward Tilt-and-Turn:
Germany HOPPE Handle (A4 casement handle) + Germany Roto concealed tilt-and-turn hardware
Inward Casement：
Germany HOPPE Handle (A4 casement handle)+ Proprietary locking hardware
Inward Opening Screen Sash: E12 Concealed Lock + Proprietary Hardware |
| Opening Mode | - Inward Casement with Inward Screen （highly transparent screen mesh / High-transparency Stainless Steel screen mesh / Stainless Steel screen mesh）
- Tilt-and-Turn with Inward Screen Mesh（highly transparent screen mesh / High-transparency Stainless Steel screen mesh / Stainless Steel screen mesh）
|
| Glazing Bead | Standard bevelled glazing beads; optional square glazing beads. |
| Color Options | External Color：Cold Moon Grey/Mocha Brown/Luminescent Gold/Starry Black/Phantom White/Phantom Grey Optional:Light cloud curry/Jade Green Internal Color:Cold Moon Grey/Mocha Brown/Luminescent Gold/Starry Black/Phantom White/Phantom Grey
Optional :Light cloud curry/Phantom Black/Waklnut/Red Teak/Red Sandalwood/Rosewood Gold |
| Core Advantages | - Flush Double-Inward：Whole-frame glazing beads for sleek architectural lines.
- Continuous Gasket：Seamless corner-loop profiles for superior sealing
- Ultrawide Strips：44mm insulation barriers with optional foam injection for peak performance.
- Concealed Drainage：Integrated anti-wind flaps for backflow-free evacuation.
- Premium Screen Options:Stainless Steel Screen, highly transparent screen, and High-transparency Stainless Steel Screen for versatile protection.
|
| Applicable Venues | Bedrooms,balcony enclosure, Kitchens，Commercial Spaces |
