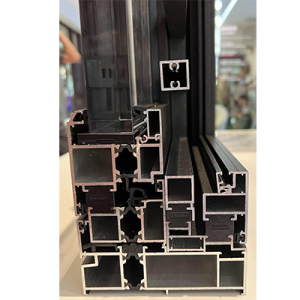

| Series | Mingxuan 120 outward casement system window |
| Window Type | Outward Casement with Mesh |
| Frame Depth | 120mm |
| Mullion Width | 25mm |
| Profile Thickness | 2.0mm |
| Sash Size Limitations | Sash Width (W): 380mm-750mm
Sash Height (H): 380mm-1500mm |
| Thermal break depth | Baiyun Yile 14.8mm (Baiyun Yile, Youtai)(Technoform available for both fixed and opening sections) |
| Glass Configuration | 5mm + 20A + 5mm Insulated Tempered Glass (Standard: Black corrugated aluminum spacer bars) |
| Hardware | Outward-Opening Glass Vent:
Germany HOPPE Handle + Germany Roto Friction Hinges + Proprietary Hardware
Outward Tilt-and-Turn Glass Vent:
Wehag Handle + Wehag outward top-hung hardware
Screen mesh：
Germany HOPPE Handle + Proprietary hinges & locking hardware |
| Opening Mode | - Single Outward Casement (Top-Hung)
- Outward Tilt-and-Turn Window
- Outward Casement / Top-Hung (with inward highly transparent screen mesh, stainless steel screen or High-transparency stainless steel screen mesh)
- Outward Tilt-and-Turn (with inward highly transparent screen mesh, stainless steel screen or High-transparency stainless steel screen mesh)
|
| Glazing Bead | Standard: Slanted glazing bead; Optional: Round or square glazing bead. |
| Color Options | External Color：Cold Moon Grey/Mocha Brown/Luminescent Gold/Starry Black/Phantom White/Phantom Grey Optional:Light cloud curry/Jade Green Internal Color：Cold Moon Grey/Mocha Brown/Luminescent Gold/Starry Black/Phantom White Optional:Light cloud curry/Phantom Black/Waklnut/Red Teak/Red Sandalwood/Rosewood Gold |
| Core Advantages | - Flush interior and exterior profile design delivers a sleek, flat facade with elegant aesthetics.
- Utilizing advanced SUNHOHI corner-injection and one-piece die-casting technologies to ensure high structural strength and a perfectly flush alignment.
- Features an aligned thermal isotherm design paired with triple automotive-grade EPDM gaskets and a stepped water-barrier structure, optimizing watertightness and airtightness.
- Equipped with a concealed drainage system that minimizes the risk of rainwater backflow, ensuring more direct and efficient outdoor water discharge.
- The integrated reinforcing ribs within the window frame provide ultimate security for large glass panes, blending smart engineering with the market’s demand for panoramic views.
- The safety barrier offers both fixed and openable options, successfully balancing child-safety protection with emergency fire escape functions.
- Optional Stainless Steel screen mesh, highly transparent screen mesh, and High-transparency Stainless Steel screen mesh for various design requirements.
|
| Applicable Venues | Bedrooms,balcony enclosure, Kitchens，Commercial Spaces |
