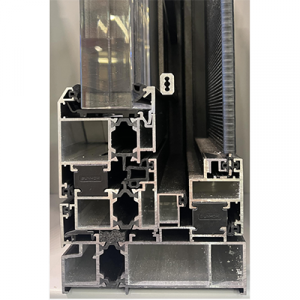

W 73mm × D 61mm
(W = Face Width, D = Sash Depth)

Outward Casement Window:
Sash Width (W):300mm -750mm,
Sash Height (H):380mm-1500mm;
Top-hung Window:
Sash Width (W):380mm -750mm,
Sash Height (H):380mm- 1500mm;
Outward Tilt & Turn:
Sash width(W):510mm -900mm,
Sash height(H):665mm-1500mm

Outward-Opening Glass Vent:
Germany HOPPE Handle （B1 casement window Handle) + Germany Roto Friction Hinges + Proprietary Hardware
Outward Tilt-and-Turn Glass Vent:
Wehag Handle (D4 casement window Handle) + Wehag Outward top-hung Hardware
Screen mesh：
Germany HOPPE Handle （A7 casement window Handle)+ Proprietary Hardware
Remark:

1.The glass sash hinges can be optionally equipped with the Hoppe E-series hinges.
2.The screen sash can be optionally upgraded with the L4 fingerprint smart lock (featuring a 25mm spindle and M5*35 installation screws), or alternative C3/C4 casement window handles.

1. Single Outward Casement / Single Top-Hung
2. Outward Tilt-and-Turn
3. Outward Casement / Top-Hung + inward Screen (with inward highly transparent screen or stainless steel screen or High-transparency stainless steel screen )
4. Outward Tilt-and-Turn + inward Screen (with inward highly transparent screen or stainless steel screen or High-transparency stainless steel screen)
5. Fixed Light
6. Double Casement (Featuring Flying Mullion, 30mm offset gearbox layout)

Optional:Light cloud curry/Jade Green

Internal Color：Cold Moon Grey/Mocha Brown/Luminescent Gold/Starry Black/Phantom White/Phantom Grey

Optional :Light cloud curry/Phantom Black/Waklnut/Red Teak/Red Sandalwood/Rosewood Gold

1. Flush Frame & Sash: Seamless, flat facade with a refined minimalist profile.
2. Utilizing advanced SUNHOHI corner-injection technology to ensure a structurally sound frame with superior overall performance.
3. Equipped with a concealed drainage system that minimizes the risk of rainwater backflow, ensuring more direct and efficient outdoor water discharge4
4. Concealed Drainage: Wind-flap engineering to eliminate rainwater backflow.
5. Slimline Guardrail: Robust safety protection with a minimal visual footprint.
