Two-track: W 110mm x D 40mm
Three-track: W 165mm x D 40mm

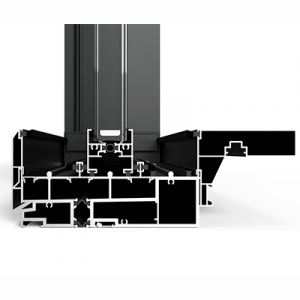

Glass Sash Size: W 21mm x D 42mm
Screen Sash Size: W 25mm x D 42mm
(W = Face Width, D = Frame Depth)

Sash width(W): 380mm-1800mm
Sash height(H): 400mm-1600mm

Sliding Glass / Screen Sash :(Standard WICONA Hardware)
VT Lock (With Key)+Top Guide Rollers+ Bottom Rollers

1. Features a frame-enclosed hidden sash structure paired with a lateral automatic slam-lock hardware system, delivering a minimalist and elegant facade.
2. Equipped with a 3.0mm ultra-thick track and a steel-reinforced core inside the mullion, enabling heavy load-bearing capacity to accommodate large-scale window demands.
3. Utilizes a concealed floor-drain style track, ensuring highly efficient water evacuation, eliminating rainwater backflow, and achieving superior watertightness.
4. The minimalist track design allows for quick, effortless cleaning and daily maintenance.
5. .Flexible for both indoor and outdoor screen sash installation, with options including high-transparency mesh, high-transparency security mesh, and standard stainless steel security mesh.
6. Optional handrails with integrated ambient lighting are available, highlighting technological innovation and modern charm.
7. Features an optional foldable/openable clothes drying rack to perfectly
