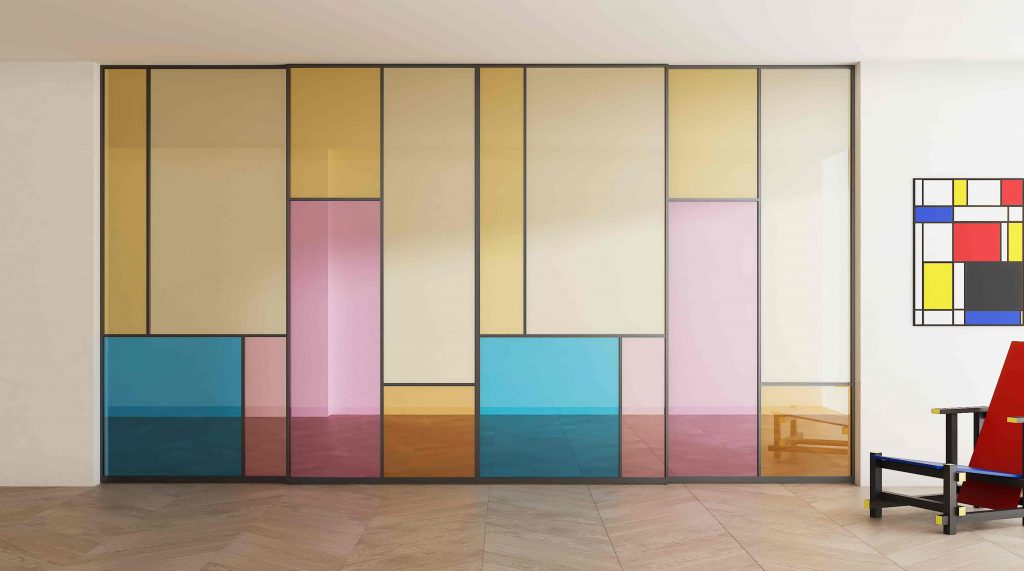

High-End Custom Artistic Top-Hung Sliding Door Series

Specification	Details
Series	High-End Custom Artistic Top-Hung Sliding Door Series
System Door Types	Interior Top-Hung Sliding Door
Glass Configuration	Standard: 8mm Tempered Glass
Sash Dimensions	Sash Interlock: 18mm (Front Face) × 45mm (Thickness)
Track Frame Dimensions	Single Track (Wall-mount): 60 mm Double Track (Wall-mount): 111 mm Triple Track (Wall-mount): 162 mm
Opening Configurations	Single Track, Single Panel (1T1P) Single Track, 2-Panel (1T2P) Double Track, 2-Panel (2T2P) Double Track, 4-Panel (2T4P)
Recommended Size Range	Top-hung Sliding Door: Sash Width(W): 560mm (Double Soft-close) –1500mm Sash Height(H): 1700 mm – 2800 mm Please refer to the size limitation chart for specific structural limits. If the dimensions exceed the allowable range, please consult customer service and obtain special technical approval before placing your order.
Hardware	Lock-free & handle-free, standard dual soft-close dampers and anti-sway rollers
Color Options	Phantom Black/Cool Moon Gray
Core Advantages	Embedded glazing with integrated sash gaskets: Engineered with premium sash-gasket sealing technology, eliminating the need for exterior silicone sealant to deliver a clean, flawless aesthetic. Customizable mid-rails and pane grids: Supporting bespoke section divisions and a wide array of decorative/artisan glass options to perfectly complement diverse interior design styles. Standard dual-damping top hangers: Ensuring a soft-closing motion that is both exceptionally safe and highly durable.
Applicable Venues	Study Room, Cloakroom, Commercial Spaces
