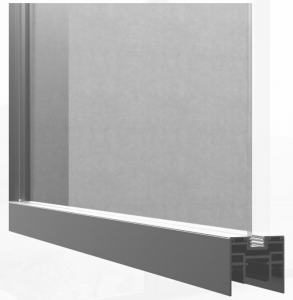

IDEA05Pro Top-hung Sliding Door

Specification	Details
Series	IDEA05Pro Top-hung Sliding Door
System Door Types	Interior Top-Hung Sliding Door
Main Profile Thickness	2.2mm
Glass Configuration	8mm Tempered Glass
Sash Dimensions	Beveled Edge: 5mm (Front Decorative Face) × 45mm (Thickness) × 16mm (Projected Face) Straight Edge: 10mm (Front Face, excluding 7.5mm rib/fin decorative face) × 45mm (Thickness)
Track Frame Dimensions	Single Track (Wall-mount): 60 mm Double Track (Wall-mount): 111 mm Triple Track (Wall-mount): 162 mm
Opening Configurations	Single Track, Single Panel (1T1P) Single Track, 2-Panel (1T2P) Double Track, 2-Panel (2T2P) Double Track, 4-Panel (2T4P) Triple Track, 3-Panel (3T3P) Quadruple Track, 4-Panel (4T4P) Quintuple Track, 5-Panel(5T5P)
Applicable Door Types	3-Panel Telescopic(Optional), 4-Panel Telescopic(Optional), 5-Panel Telescopic(Optional)
Recommended Size Range	Top-hung Sliding Door: Sash Width(W): 400 mm – 1500 mm Sash Height(H): 1700 mm – 2800 mm Standard Sliding Door: Sash Width(W): 480 mm (Single Soft-close) / 750 mm (Double Soft-close) – 1500 mm Sash Height(H): 1700 mm – 2800 mm Please refer to the size limitation chart for specific structural limits. If the dimensions exceed the allowable range, please consult customer service and obtain special technical approval before placing your order.
Hardware	Lock & Handle: V12 Minimalist Handle Sliding Door: Standard Single Soft-Close Top-Hung Door: Standard Dual Soft-Close
Color Options	Standard：Cool Moon Grey/Luminescent Gold/Phantom Black/Phantom White/Aurora Grey Optional :Light cloud curry/Jade Green/Mocha Brown/Starry Black/Waklnut/Red Teak/Red Sandalwood/Rosewood Gold
Core Advantages	Ultra-slim interlock meets diamond-beveled edges: A 5mm minimalist sightline for ultimate transparency. Fully concealed hardware: Delivering precision millimeter-level clearances. Multi-panel linkage: Engineered for a silky-smooth, effortless glide. Integrated lock and handle: Eliminating complexity for a pure, seamless experience. Triple-panel linkage: Redefining fluid and effortless sliding. 90° barrier-free corner: Extending spaces with uninterrupted horizons. Flush triple-panel design: Saving two-thirds of the stackable opening space. Integrated damping system: Anti-slamming and finger-pinching protection. Flush embedded glazing: No exterior silicone sealant; just pure, clean aesthetics.

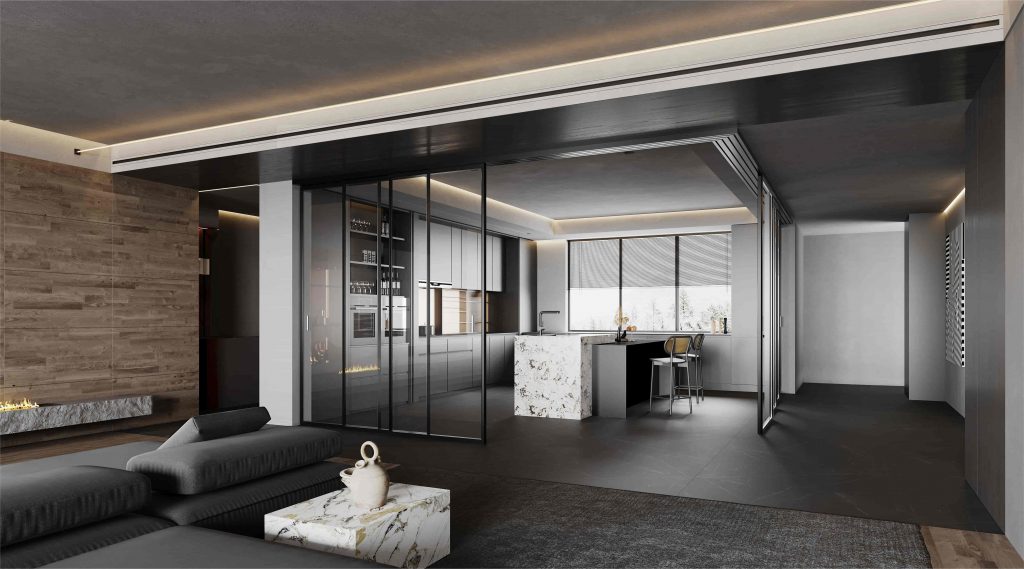

Applicable Venues	Kitchen, Study Room, Cloakroom
