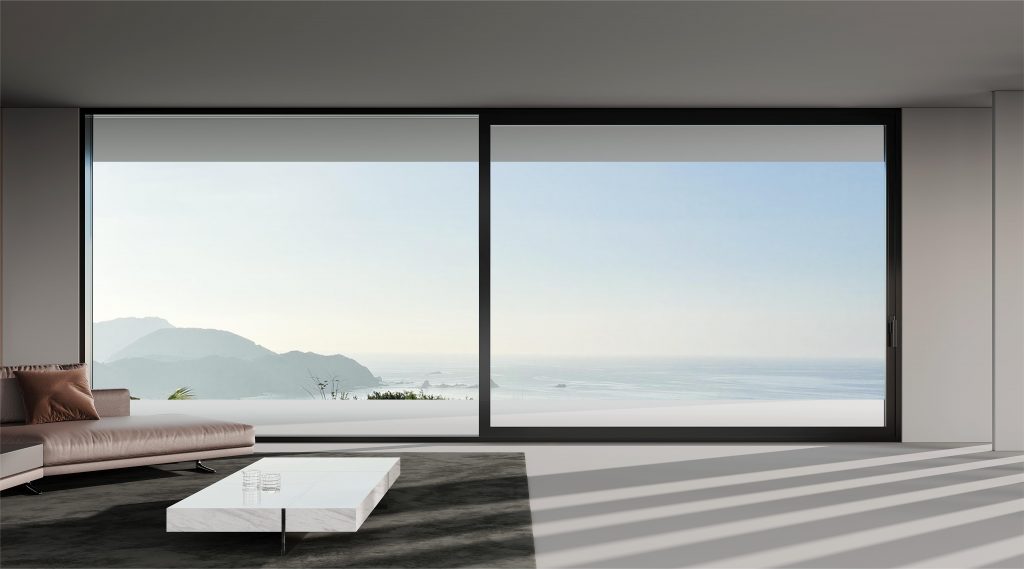

LingXuan 165 Sliding Door

Specification	Details
Series	LingXuan 165 Sliding Door
System Door Types	Exterior thermal-insulation Sliding Door
Main Profile Thickness	2.2mm
Glass Configuration	6mm+27A+6mm Tempered insulated glass equipped with standard black corrugated aluminum spacers.
Sash Dimensions	W 100mm × D 60mm (W = Face Width, D = Sash Depth)
Track Frame Dimensions	Monorail/Dual-Track (Wall-Mount)：165mm
Opening Configurations	2-track 2-panel, 2-track 4-panel, 1 fixed + 1 movable, 2 fixed + 2 movable
Recommended Size Range	Sash Width(W):520mm (Standard Roller) / 715mm (Lift-and-Slide Hardware) – 3000mm Sash Height(H):1800mm (Twin Mushroom-Head Locking Points) / 2400mm (Lift-and-Slide Hardware)- 3500mm Please refer to the size limitation chart for specific structural limits. If the dimensions exceed the allowable range, please consult customer service and obtain special technical approval before placing your order.

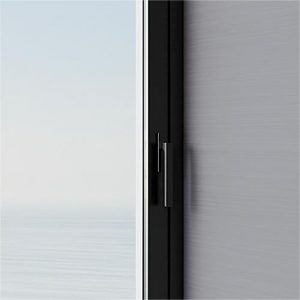

Hardware	Double mushroom lock points + S8 hook lock, S8 flush pull, V5 pull handle. Optional: Split keyed lock, L5 fingerprint lock, Hautau lift-and-slide system + U1 Hautau single-sided lift handle, Hautau lift-and-slide system + Germany U11 HOPPE single-sided lift handle, 2-point hook lock / 4-point hook lock
Color Options	Standard：Cool Moon Gray/Mocha Brown/Phantom Black Optional ：Luminescent Gold/Phantom White
Core Advantages	Superior Wind Resistance: 60mm sash depth and 2.2mm wall thickness for a robust structure. Effortless Sliding: Optional 400KG heavy-duty lift-and-slide roller system for premium, smooth operation. Maximum Thermal Insulation: Optional triple-glazed glass and multi-chamber thermal struts. Enhanced Water-Tightness: Diverted track design with dual drainage caps to prevent backflow. Dual Mushroom Locks: Anti-pry and tensile-resistant cams and keeps for high security.
Applicable Venues	Outdoor Balcony, Commercial Application,Courtyard
