Full-Screen Minimalist Collection

Specification	Details
Series	Full-Screen Minimalist Collection
System Door Types	Interior Top-Hung Sliding Door
Main Profile Thickness	2.2mm
Glass Configuration	One panel with two lites of 5mm Tempered Glass (Euro Grey style)
Sash Dimensions	Interlock: 2mm (Front Face) × 46mm (Thickness)
Track Frame Dimensions	Single Track (Wall-mount): 60 mm Double Track (Wall-mount): 111 mm Triple Track (Wall-mount): 162 mm
Opening Configurations	Single Track, Single Panel (1T1P) Single Track, 2-Panel (1T2P) Double Track, 2-Panel (2T2P) Double Track, 4-Panel (2T4P) 3-Track,3-Panel(3T3P) 3-Track,6-Panel(3T6P) Optional: Maglev / Motorized Top-Hung Doors
Recommended Size Range	Top-hung Sliding Door: Sash Width(W): 560mm (Double Soft-close) –1500mm Sash Height(H): 1700 mm – 2800 mm

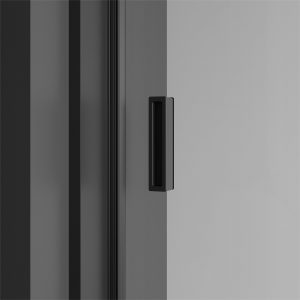

Hardware	Standard V13 Handle + Dual Soft-Close + Bottom Anti-Sway Guide
Color Options	Standard: Phantom Black
Core Advantages	1.5mm micro-slim frame: Maximizing the glass daylight opening to deliver a panoramic full-screen effect with ultimate transparency. Standard dual-damping top hangers and bottom anti-sway rollers: Ensuring a quiet, soft-closing motion with exceptional safety and long-lasting durability. Optional smart automation: Compatible with maglev linear motors or synchronous dual-belt smart linkage drive systems, supporting multiple intelligent control options for effortless remote operation.
Applicable Venues	Study Room, Cloakroom, Commercial Spaces
